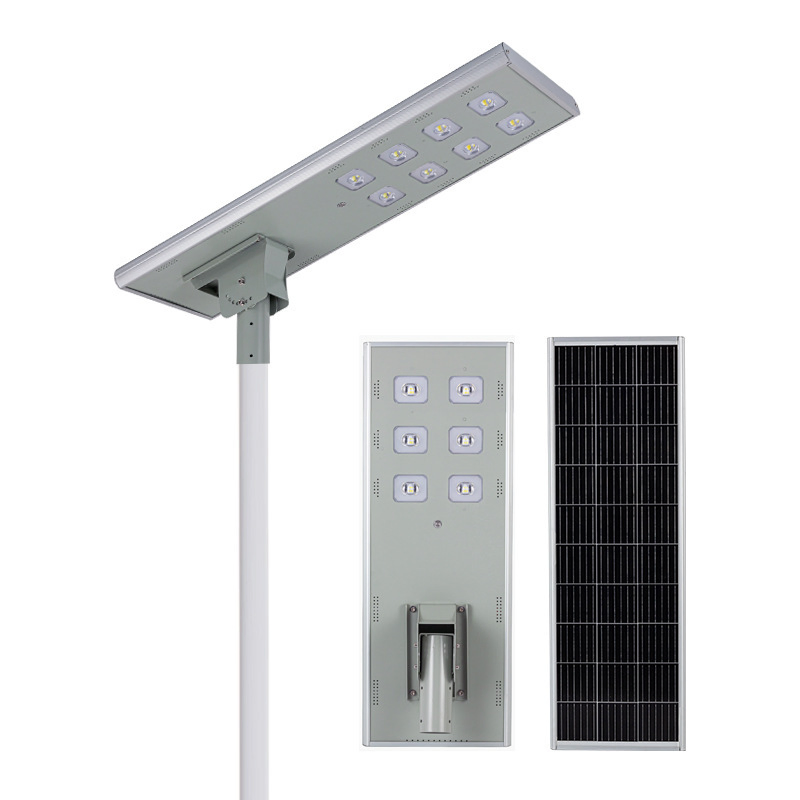

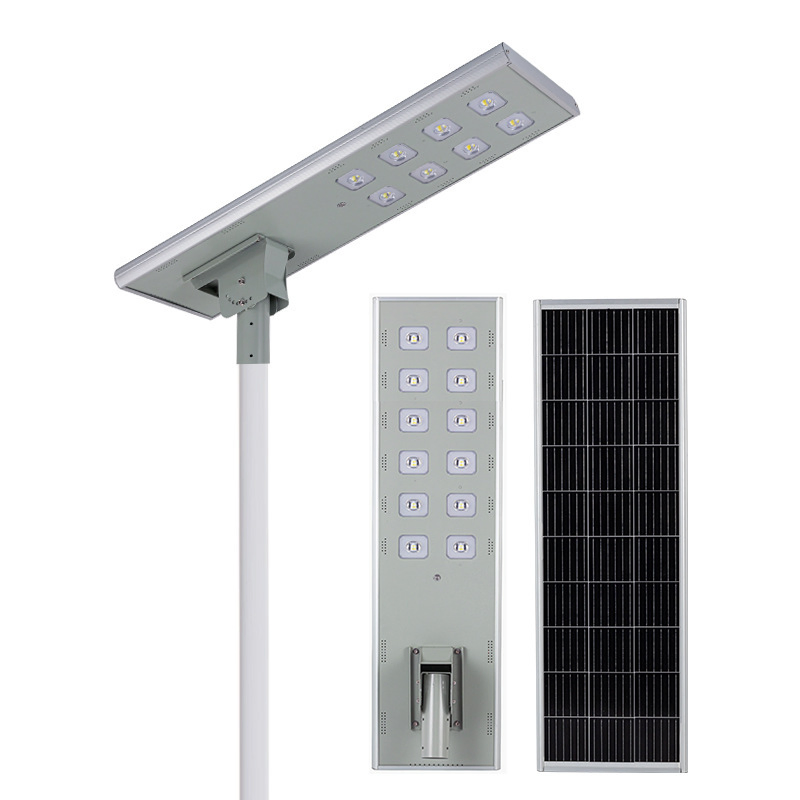

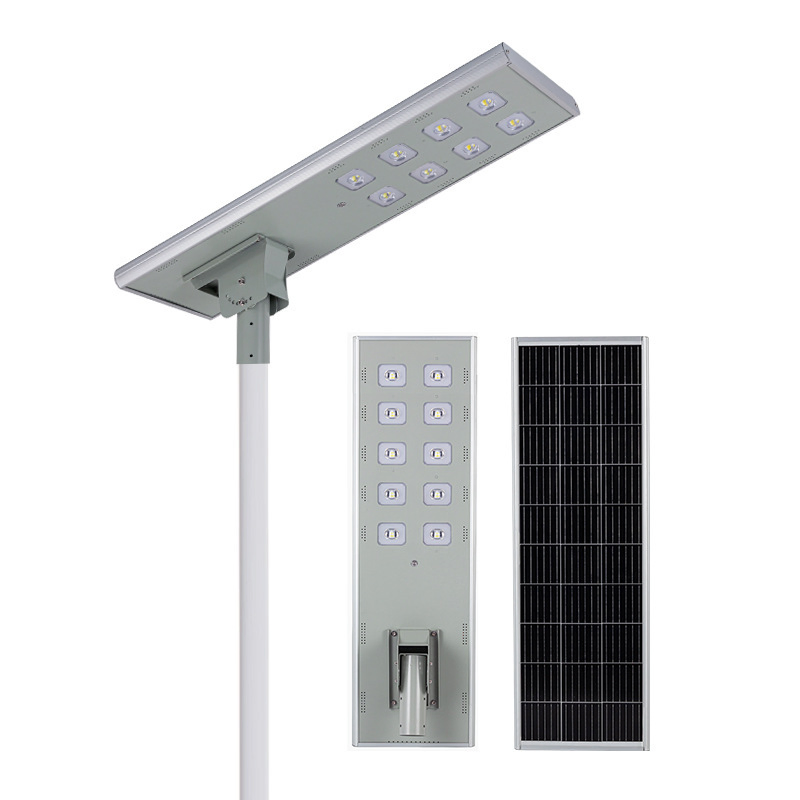

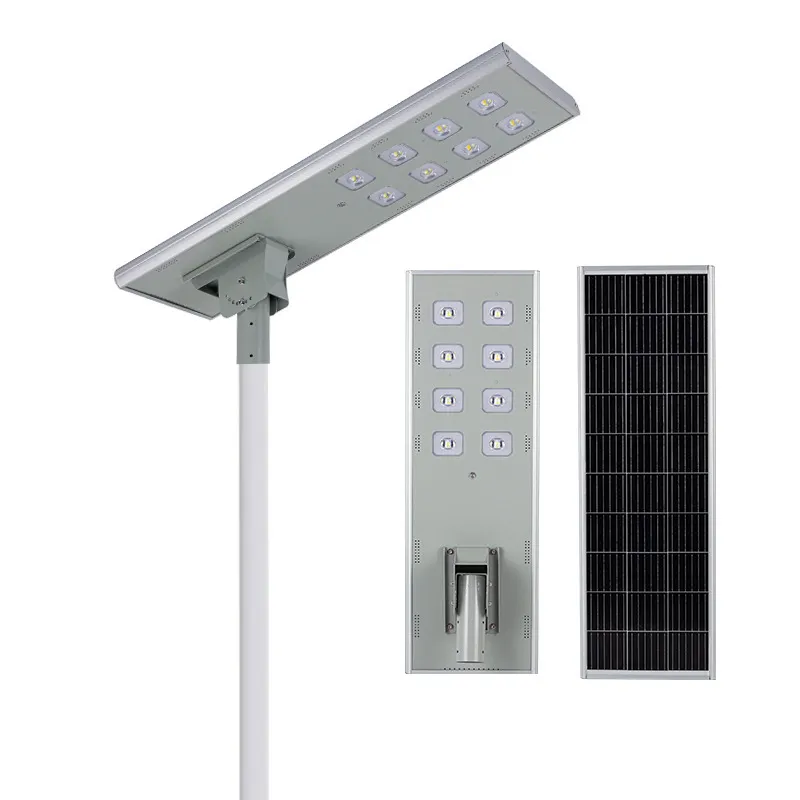

LED Solar Security High Bright Street Lights Lamp Solar Remote Control Motion Sensor Farolas Solares
Product Description
📊
Basic Specifications
Model NO.
M55
Light Type
Solar
Color Temperature
Pure White
Power
≥30W
Illumination Time
6h
Charging Time (H)
6
Luminous Efficacy
205lm/W
Battery
1152wh
PV Panel
Mono 150wp
Mounting Height
Max 15meter
Certification
IP, IK, CE, RoHS
Working Model
100%-75%-50%-100%
💡
Product Description
Solar street lights model M55 was made according to ISO 9001 standard, with 205Lm/W high luminous efficacy, especially for PUBLIC lighting use.
Designed as an integrated fixture, it combines the PV panel, Lithium battery, charge controller, and LED components together, ensuring an easy installation process.
- 24% conversion efficiency MONO solar PV panel.
- High-grade LiFePo4 battery for long-term reliability.
- MPPT charging agreement for superior charge/discharge performance.
- Advanced LED technology supports mounting heights up to 12-15 meters.
- Multiple optical lens types (Type I to V) available for highways, roads, and area lighting.
📸

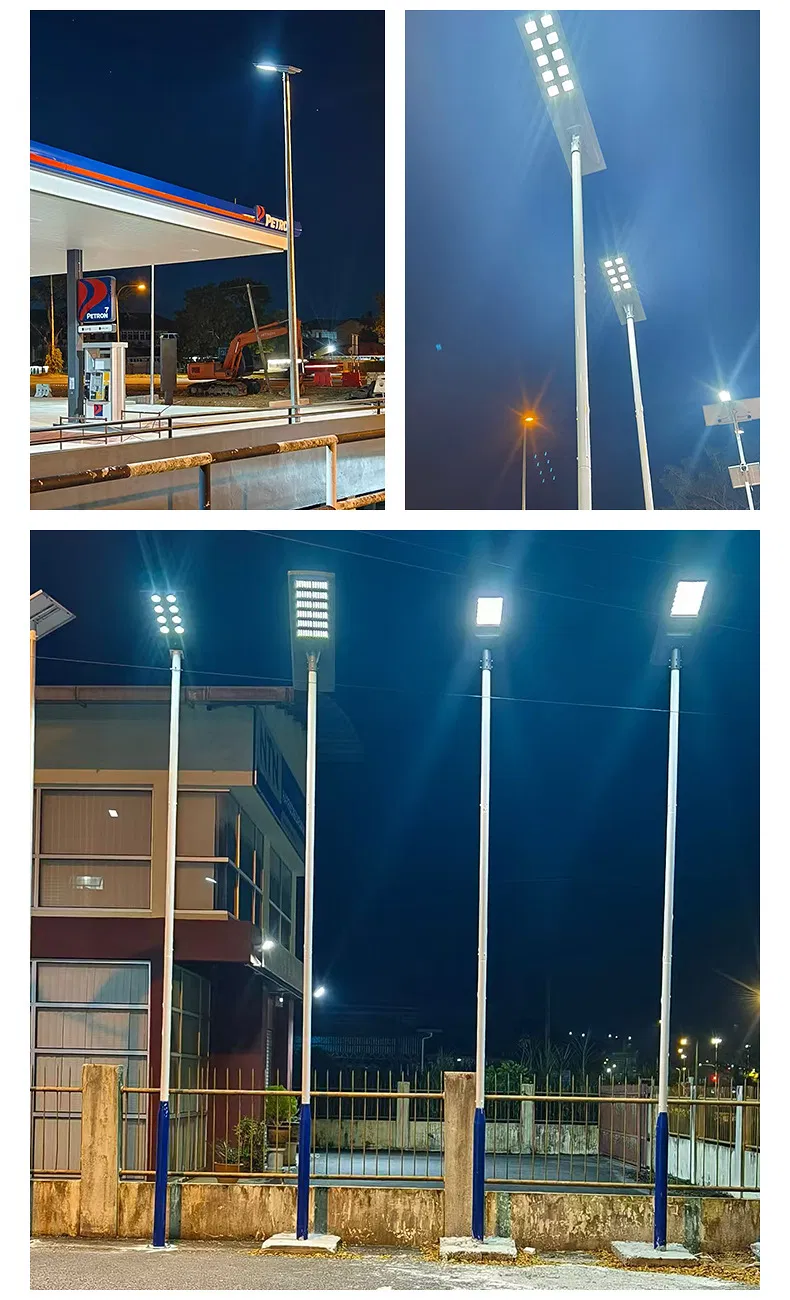

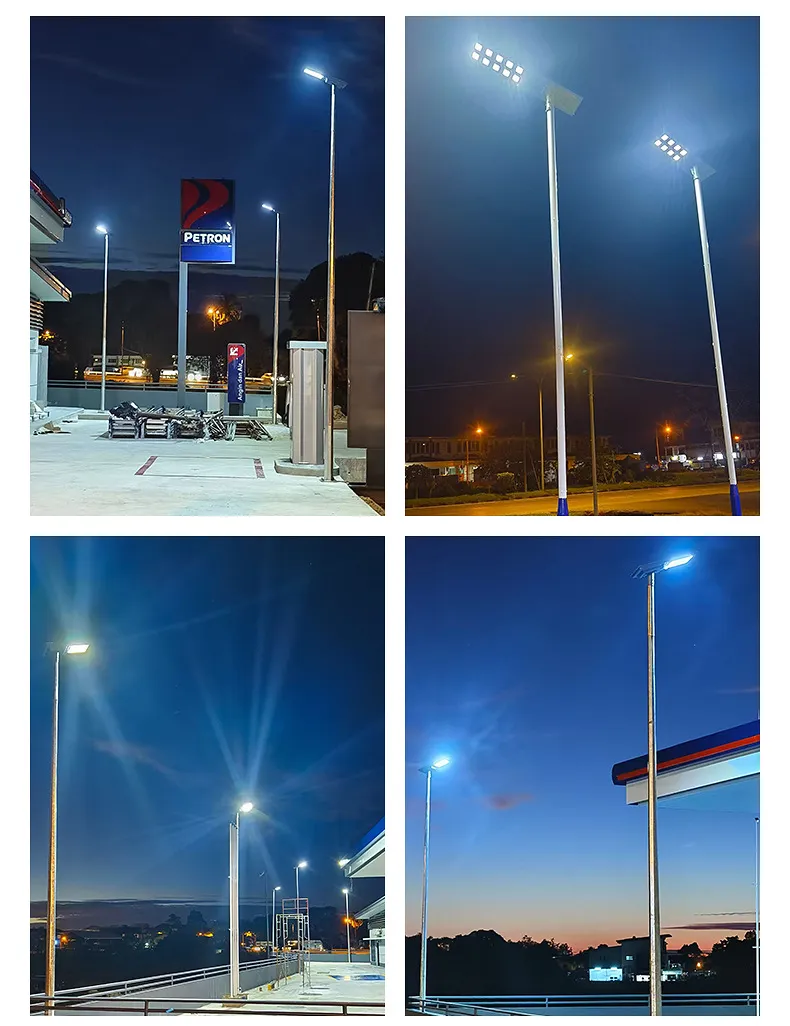

Detailed Photos
📋
Product Parameters

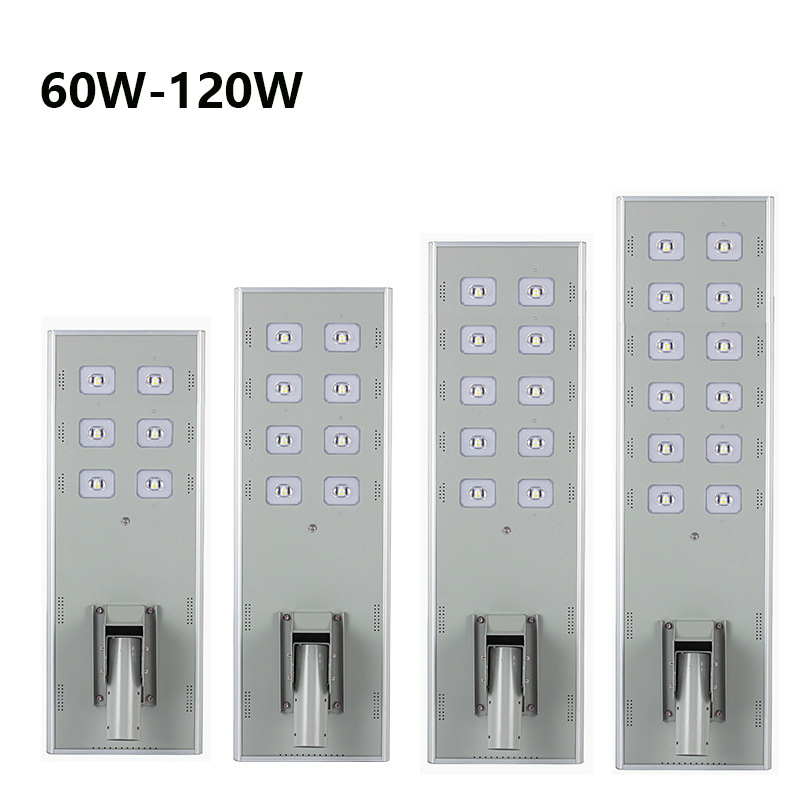

| Parameters | M55-30W | M55-60W | M55-80W | M55-100W | M55-120W |
|---|---|---|---|---|---|
| Solar panel | 50Wp 18V | 80Wp 18V | 110Wp 18V | 130Wp 18V | 150Wp 18V |
| Battery | 244Wh | 576Wh | 768Wh | 960Wh | 1152Wh |
| Luminous flux | 6150lm | 12300lm | 16400lm | 20500lm | 24600lm |
| Efficacy | 205Lm/W | ||||
| CCT | 2700k to 6500k | ||||
| Charge time | 5-6 Hours | ||||
| Mounting Height | 5-6m | 8-10m | 10-12m | 12-14m | 14-16m |
🛡️
Certifications
Our solar street lighting systems are fully certified for project tenders and international standards:
✓ IEC 60598 / 61215 / 61730
✓ IEC 62109 / 62133 / 62471
✓ LM79 / LM80 / TM21
✓ IP & IK Rated Protection
✓ CE & RoHS Compliance
📦

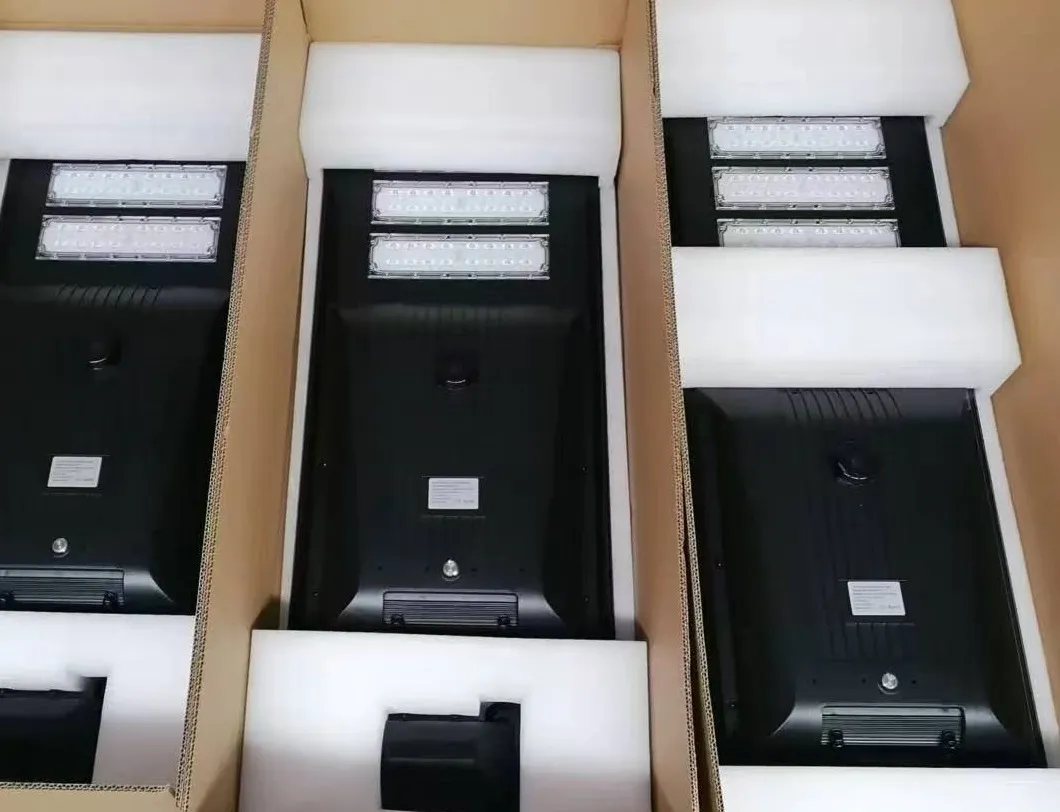

Packaging & Shipping
🛠️

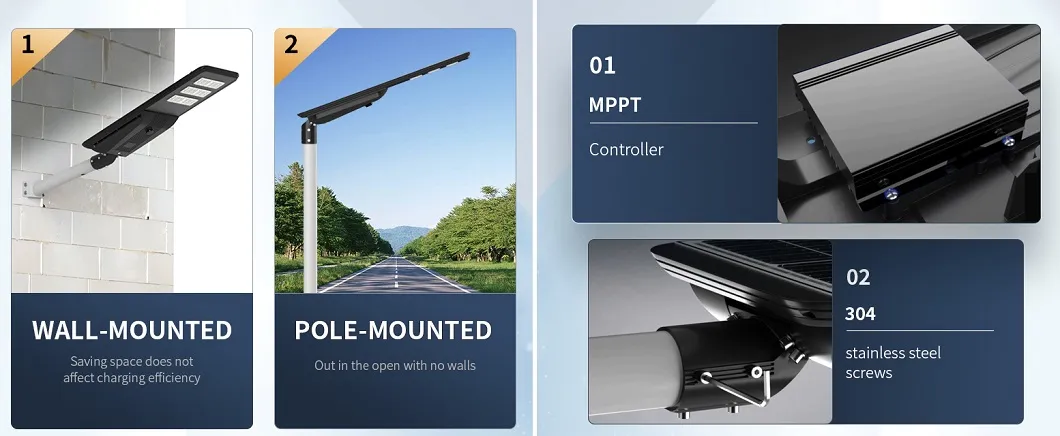

Installation Instructions
The M55 model features a flexible mounting tilt system, supporting both horizontal and vertical installations. It is an ideal choice to replace traditional HID street lights while keeping existing poles.
❓
Frequently Asked Questions
What is the luminous efficacy of the M55 solar light?
The M55 series achieves a high luminous efficacy of 205lm/W using advanced 3030 SMD LED chips.
What type of battery and solar panel are used?
It utilizes high-efficiency MONO solar panels (up to 24% conversion) and long-lasting LiFePo4 batteries with a capacity up to 1152Wh.
Is this light suitable for smart city applications?

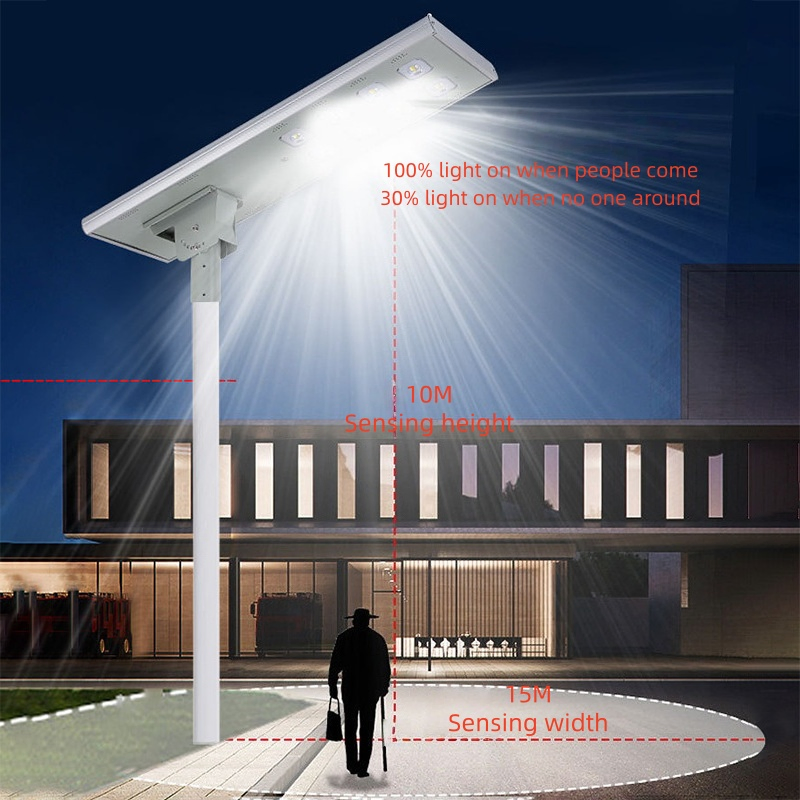

Yes, the M55 model supports 4G Lora IoT connectivity, Motion Sensors, and MPPT intelligent control systems.
How long does it take to charge and how long will it run?
It requires approximately 5-6 hours of sunlight to charge and can provide illumination for 12-14 hours per night, with 3 nights of backup power.
What are the recommended mounting heights?
Depending on the power model (30W to 120W), the recommended mounting height ranges from 5 meters to 16 meters.
What certifications does this product hold?
The M55 is fully certified with IEC, LM79, LM80, IP66, IK ratings, CE, and RoHS, making it ideal for international tenders.
