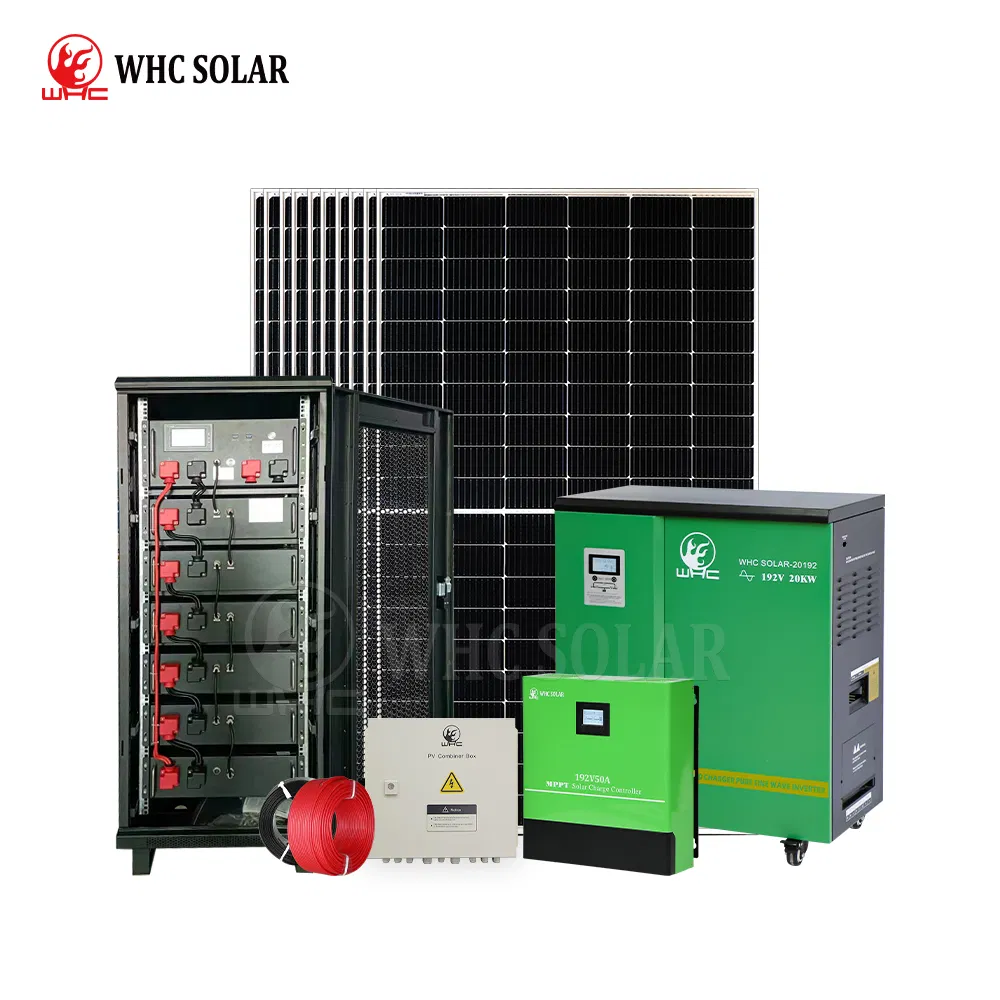

Whc High Quality Paygo Solar Energy Lighting System Power Home Kits
Product Description
Basic Specifications
Model NO.WHC15KW-Li-20KWH
Nominal VoltageAC220V
Discharge RateHigh Discharge Rate
ShapeSquare Battery
ElectrolyteLi-ion
InstallationPackaged
Product NameOffgrid Solar Power System Home
Power15kw
Battery TypeLiFePO4 Lithium Battery
InverterPure Sine Wave Inverter
ControllerMPPT Solar Charge Controller
System TypeOff-Grid Solar Power System

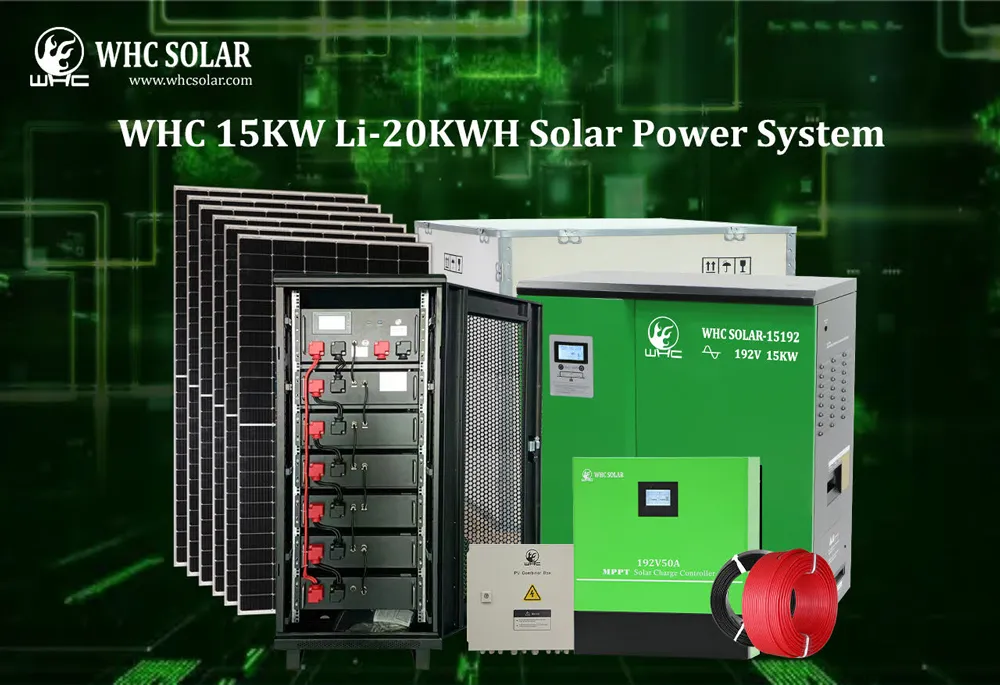

Product Overview
Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage
Model: WHC15KW-Li-20KWH
The Solar Power System, also known as an off-grid solar system, is the most cost-effective type for solar systems. It is a complete solar setup that comes with highly efficient solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate battery, and other standard solar accessories. This system not only provides continuous electricity but also reduces heavy electricity bills.
Model: WHC15KW-Li-20KWH
The Solar Power System, also known as an off-grid solar system, is the most cost-effective type for solar systems. It is a complete solar setup that comes with highly efficient solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate battery, and other standard solar accessories. This system not only provides continuous electricity but also reduces heavy electricity bills.
Technical Specifications Table
| Item | Description | Quantity |
|---|---|---|
| Solar Lithium Battery | 192V100AH LiFePO4 Lithium Battery | 1 Pieces |
| Solar Panel | 450W Solar Mono Panel | 18 Pieces |
| Solar Controller | 192V 50A MPPT Controller | 1 Pieces |
| Solar Inverter | 192V 15KW Solar Inverter | 1 Pieces |

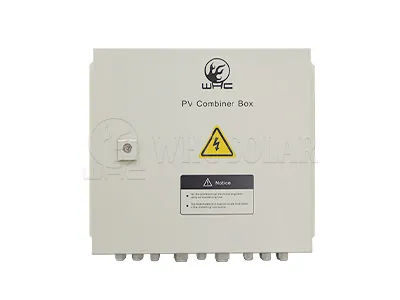

| PV Combiner Box | Six Input + Two Output | 1 Pieces |

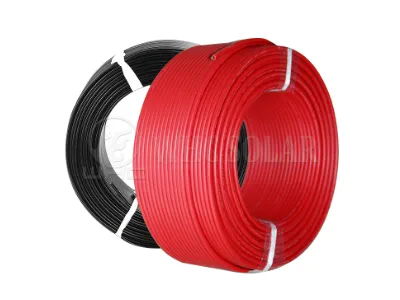

| PV Cable | Single-core 6mm2 PV cable 100m | 2 Pieces |

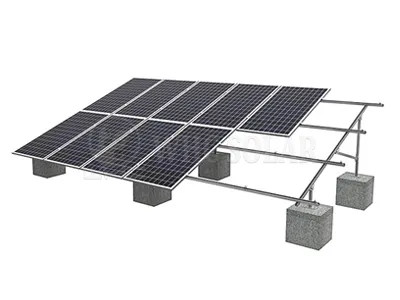

| PV Mounting Support | Hot Galvanizing Ground Mounting Support | 1 Set |

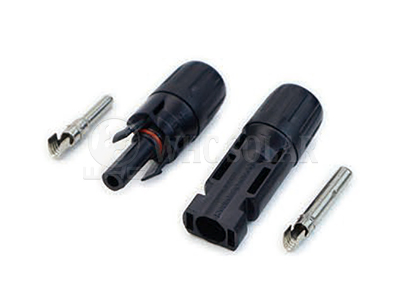

| Connector | MC4 Connector | 30 Pieces |
Core Components
☀

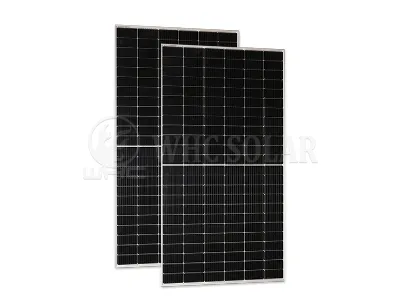

Mono Solar Panel (Model: WHC-450M-120)
Max Power Voltage: 34.67V | Max Power Current: 12.98A
Open Circuit Voltage: 41.25V | Short Circuit Current: 13.89A
Dimensions: 1909*1134*35mm
Max Power Voltage: 34.67V | Max Power Current: 12.98A
Open Circuit Voltage: 41.25V | Short Circuit Current: 13.89A
Dimensions: 1909*1134*35mm
🔋

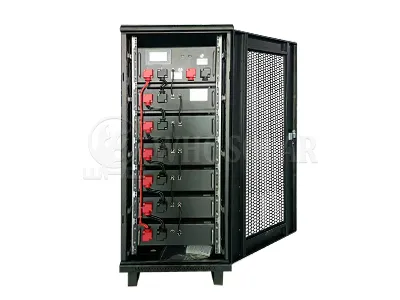

LiFePO4 Lithium Battery (WHC192V100AH)
Nominal Voltage: 204.8V | Capacity: 20480WH
Lifespan: 10 Years | BMS Max discharging Current: 100A
Nominal Voltage: 204.8V | Capacity: 20480WH
Lifespan: 10 Years | BMS Max discharging Current: 100A
⚙

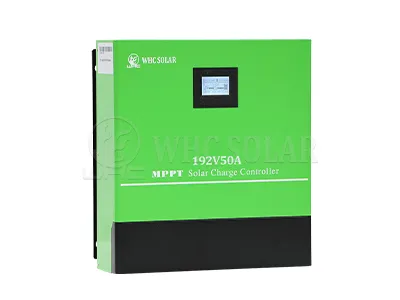

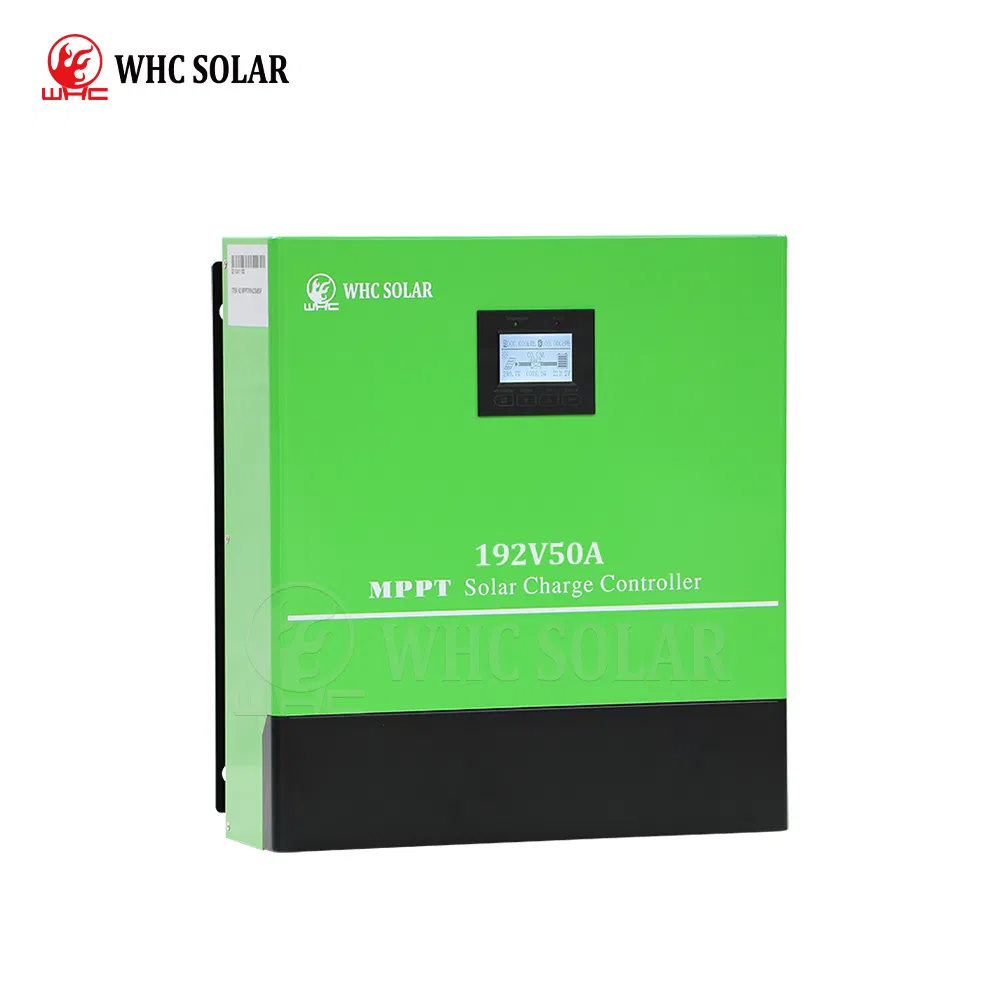

MPPT Solar Controller
Max Charging Current: 50A | Max PV Open Circuit Voltage: 430V
DC Input Voltage: 192V | MPPT Efficiency: 99%
Max Charging Current: 50A | Max PV Open Circuit Voltage: 430V
DC Input Voltage: 192V | MPPT Efficiency: 99%
🔌

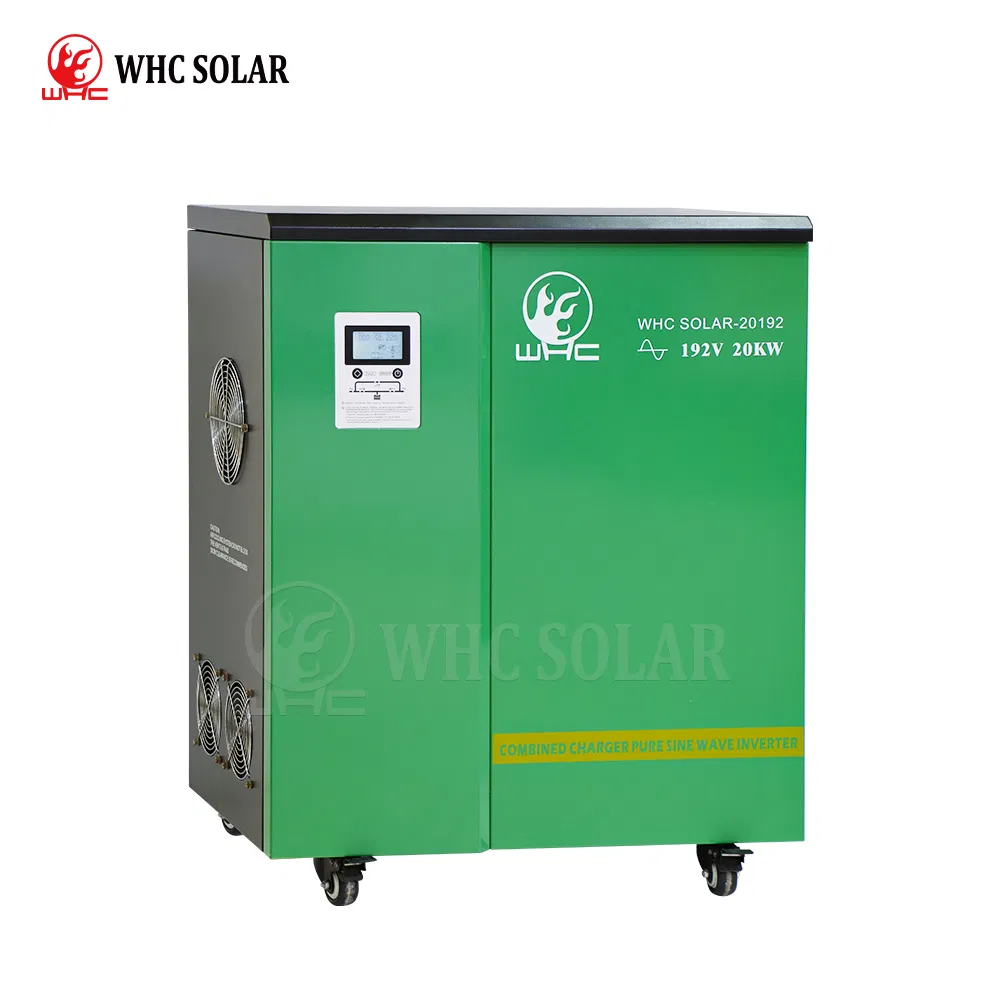

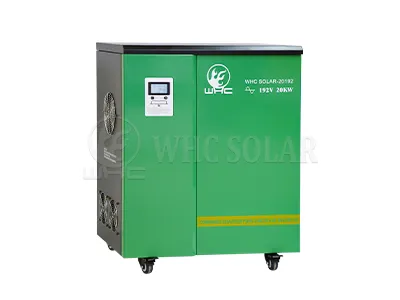

Solar Inverter (WHC192V 15KW)
Type: Low Frequency IGBT Pure Sine Wave with Big Transformer
AC Output: 220V 50/60HZ | Recharging current: 10A
Type: Low Frequency IGBT Pure Sine Wave with Big Transformer
AC Output: 220V 50/60HZ | Recharging current: 10A
Gallery & Packaging
Frequently Asked Questions
Q1. Are you a factory or trading company?
We are a factory dedicated to solar energy solutions.
Q2. Can you print my logo on the product?
Yes, OEM services are available. We can print your logo on the battery case or other components based on your design.
Q3. What kind of certifications do the products have?
Our products have won a number of national patents and passed CE, RoHS, and ISO9001:2008 quality management system certifications.
Q4. What is the typical delivery time?
Usually 14-20 days. Delivery time varies depending on the specific product and quantity ordered.
Q5. Which markets do you primarily serve?
Our main markets include Africa, South America, the Middle East, and various Western countries.
Q6. What payment methods are accepted?
We accept Money Gram, Western Union, T/T, and other standard payment methods upon agreement.
