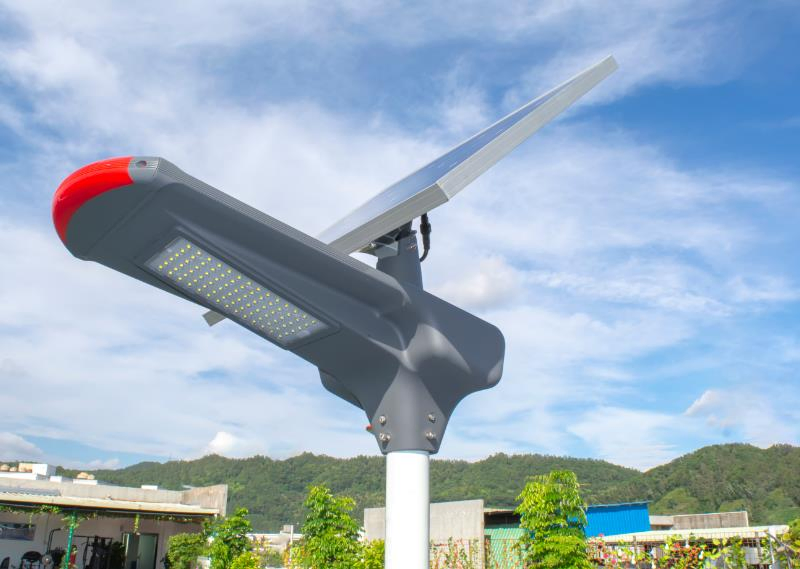

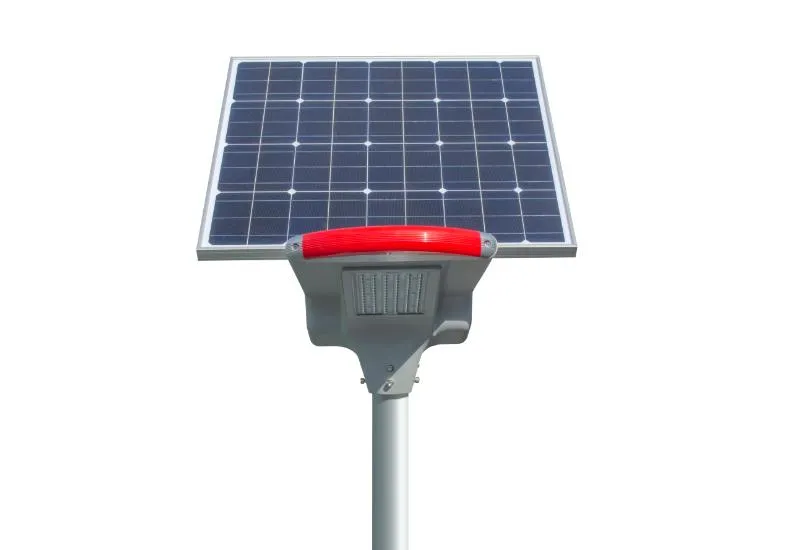

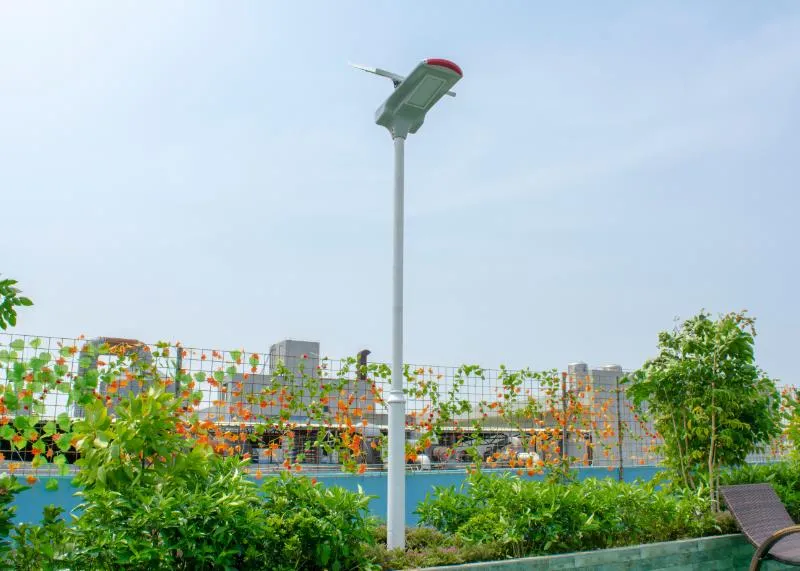

80W Solar LED Street Light Road Path Park Courtyard Garden Lamp Best Price Factory Original
Product Description
📋 Basic Specification
Model No.
JS-G01-80W
Lamp Material
Aluminum Alloy
Lighting Area
>30m²
Power Output
80W
IP Rating
IP65 Waterproof
Battery
12V 792wh Lithium
Solar Panel
18V/110W
Warranty
3 Years
Pole Height
9-11m
Light Source
84pcs LED 3535

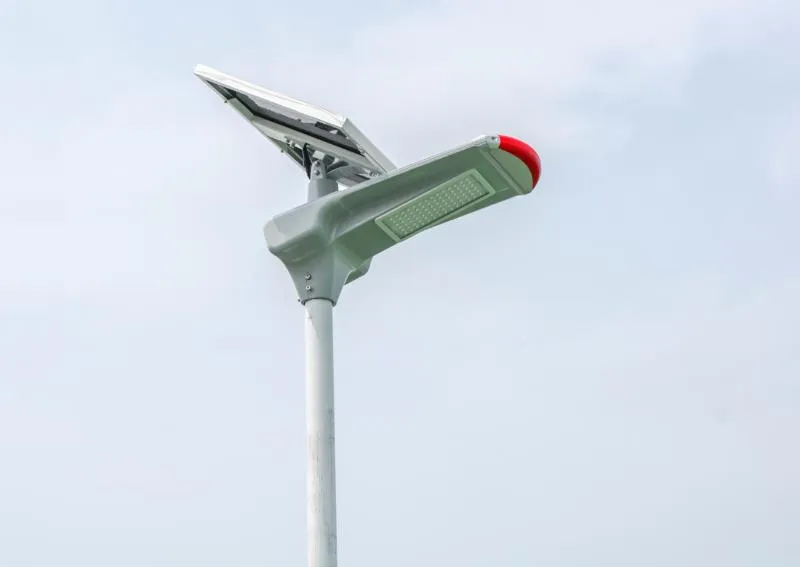

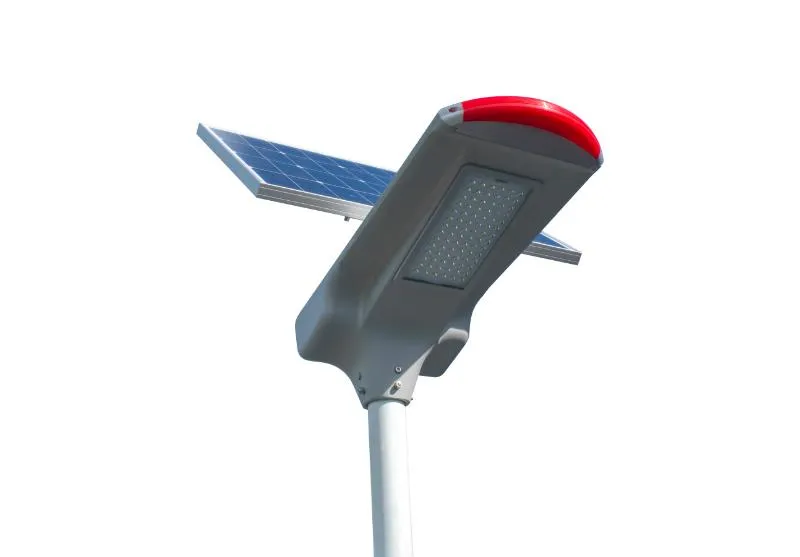

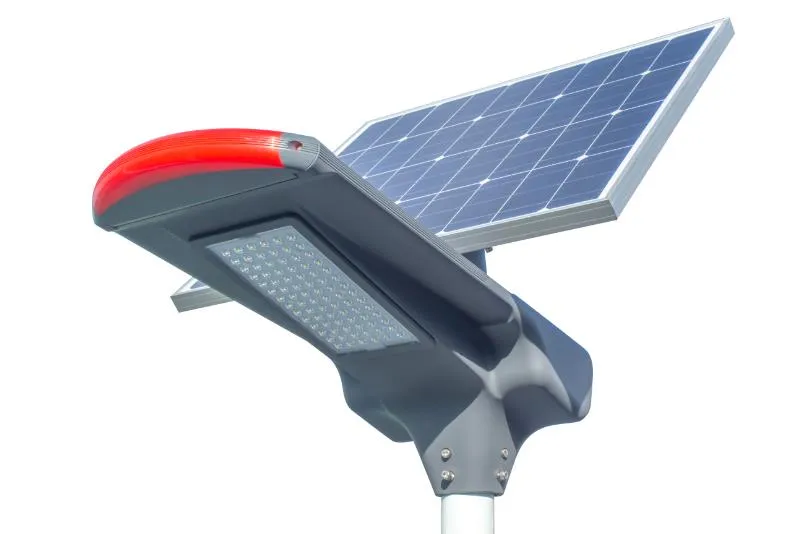

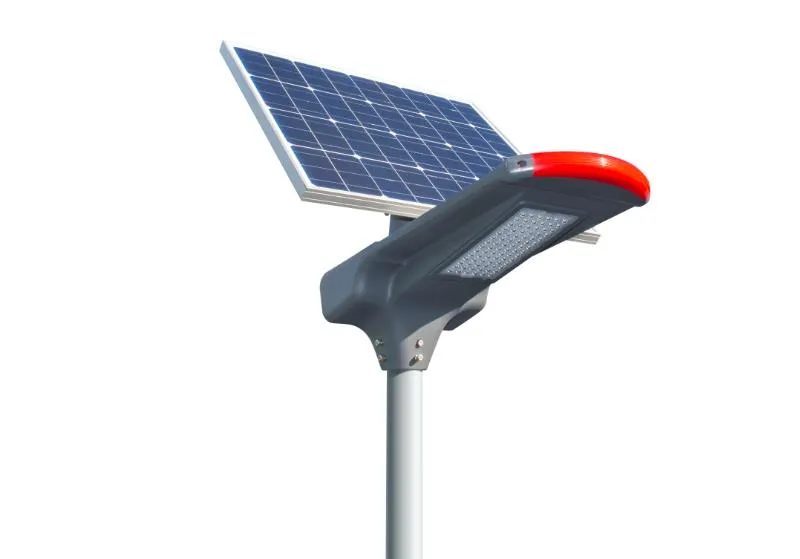

📸 Product Visualization
⚙️ Intelligent Features

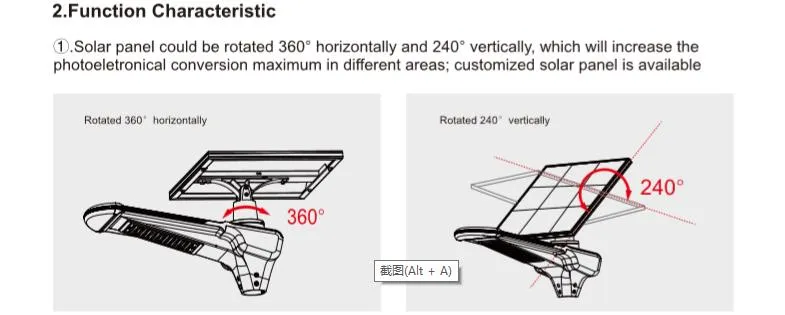

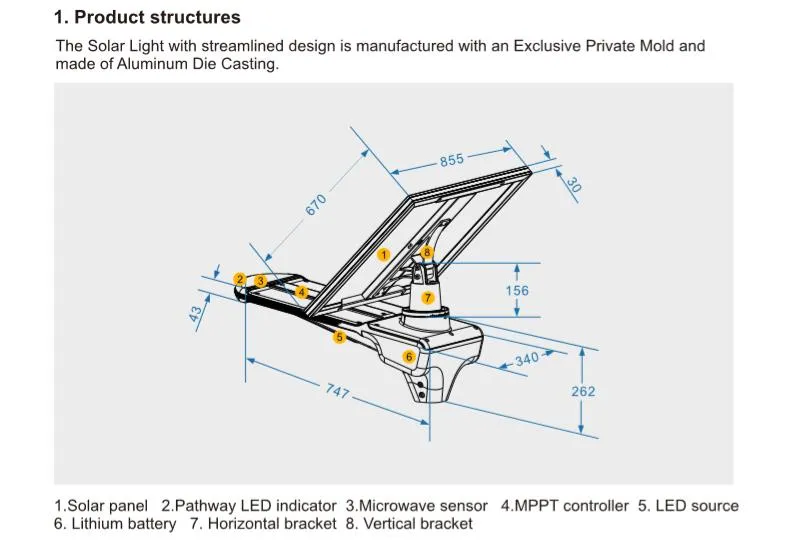

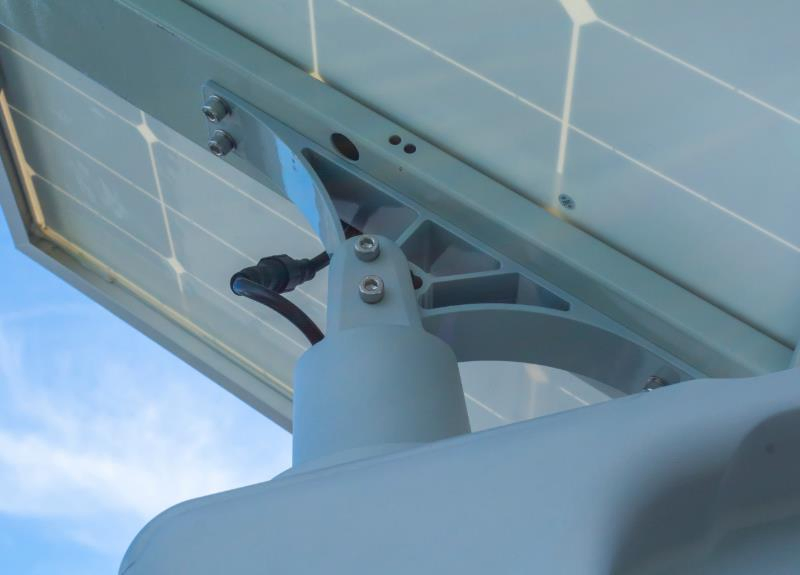

Solar panel adjustable according to sunlight
Optimal angle for solar absorption

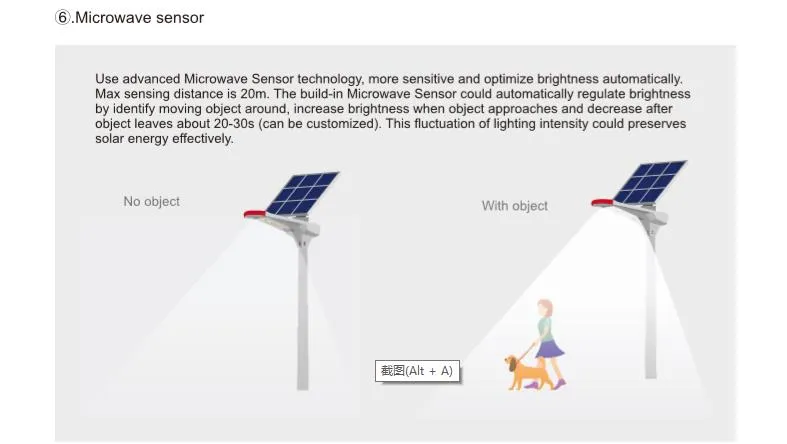

Infrared sensor-20m area, 20-30s delay

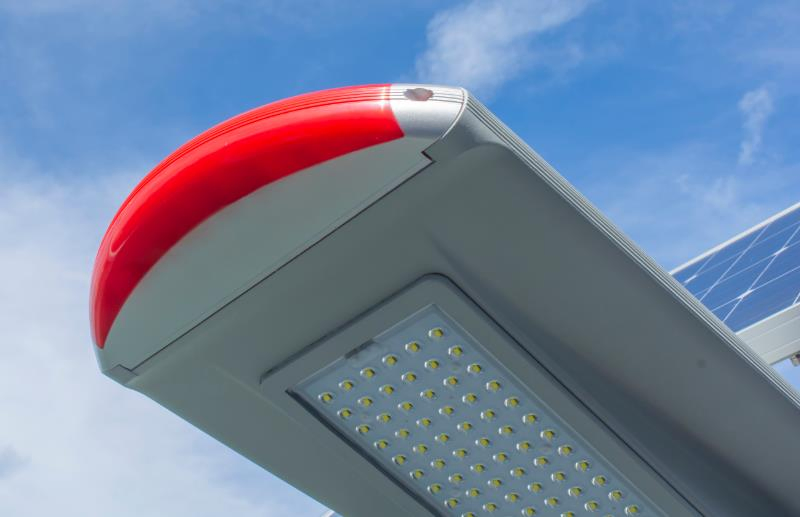

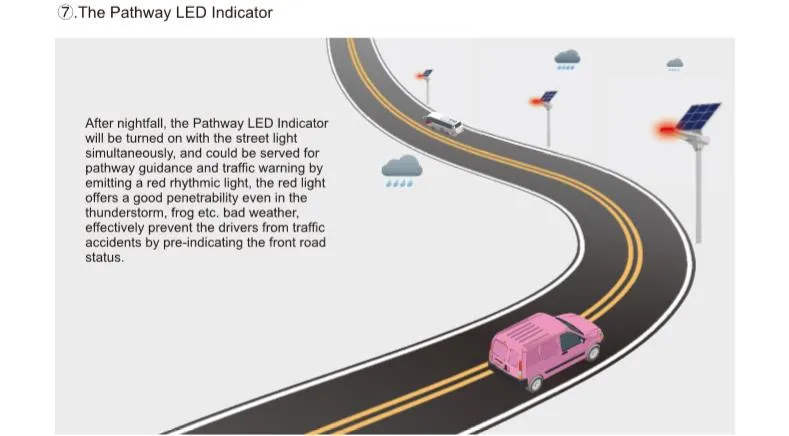

Red LED lighting for road indication

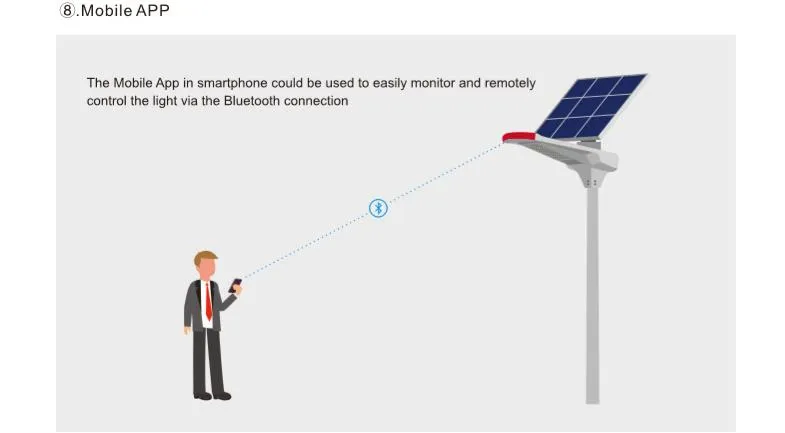

Mobile phone App control support

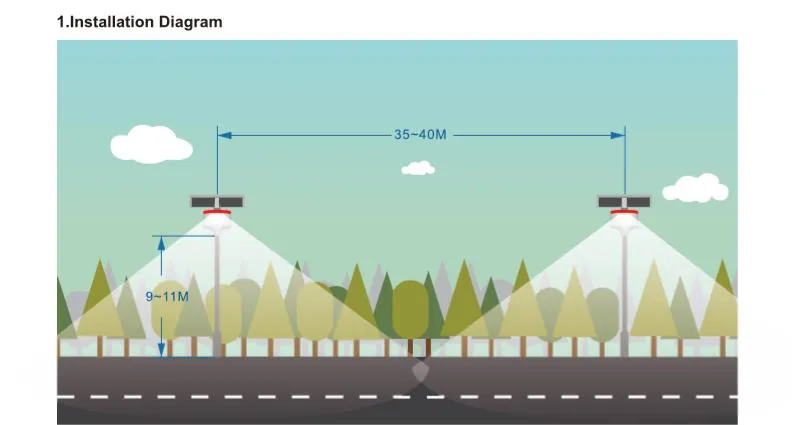

Recommended installation distance
📊 Technical Parameters
| Item No. | JS-G01-80W |
| LED Power | 12V 80W (8500-9500LM) |
| Solar Panel | 18V 110W Monocrystalline |
| Battery Capacity | 12V 792WH Lithium/LiFePO4 |
| Light Efficiency | 130LM/W ± 10LM |
| Color Temp | 3000K-6500K |
| Working Temp | -30ºC ~ +60ºC |
| Lifespan | 50,000 Hours |
| Material | High-grade Aluminum Alloy & Tempered Glass |
| Charging Time | 6 Hours (Full Sun) |
| Lighting Time | 12hrs * 3-5 Rainy Days |
| Control Methods | Sunlight Sensor, Time Sensor, Infrared Sensor, App Control |
💡 How It Works
☀️
Solar Absorption
Solar panels absorb sunlight and transform it into DC electricity efficiently.
🔋
Energy Storage
The generated DC electricity is stored in high-capacity Lithium batteries for night use.
💡
LED Illumination
The battery provides stable energy to the 80W LED light source during darkness.
❓ Frequently Asked Questions
How long does the light work during rainy days?
The system is designed to provide continuous lighting for 3 to 5 rainy days on a single full charge, thanks to its high-capacity 792WH lithium battery.
What is the optimal installation height?
For the 80W model, the recommended standard installation height is between 9 and 11 meters for maximum efficiency and coverage.
How does the infrared motion sensor function?
The sensor has a 20m range. When movement is detected, the light switches to 100% brightness. After the object leaves, it maintains this brightness for 20-30 seconds before returning to energy-saving mode.
Can I control the light using my smartphone?
Yes, the light supports App control via Bluetooth. You can set up lighting parameters, such as timing and brightness, directly from your mobile phone.
Is the solar panel adjustable for better efficiency?
Yes, the solar panel is designed to be adjustable, allowing you to position it at the best angle to capture maximum sunlight based on your geographic location.
What is the lighting range and pole spacing suggestion?
For one-side road lighting, a 30m distance between poles is suggested. For both-side road lighting, the distance can be extended up to 60m.
