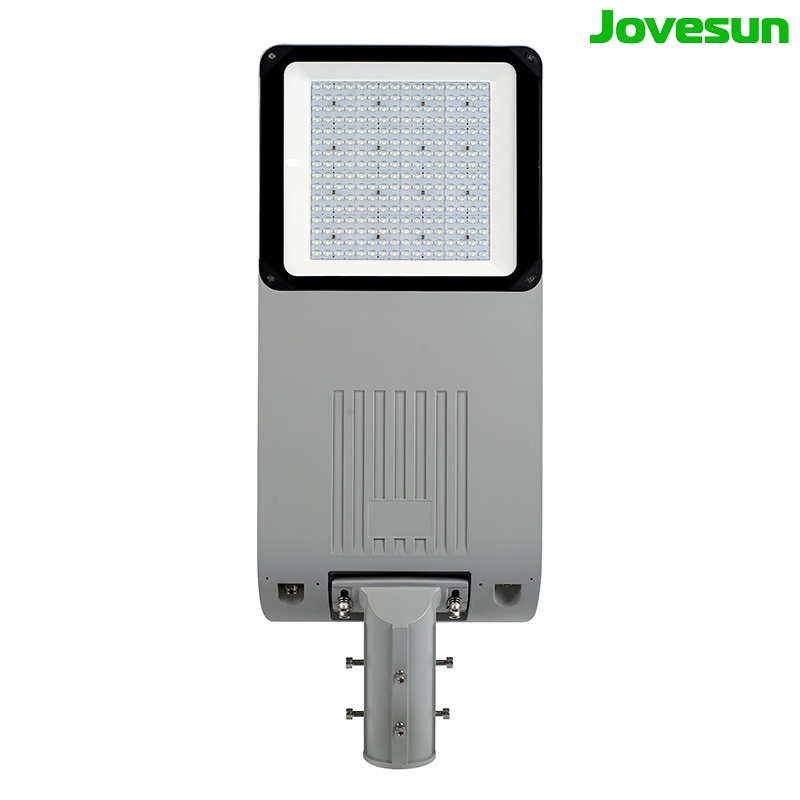

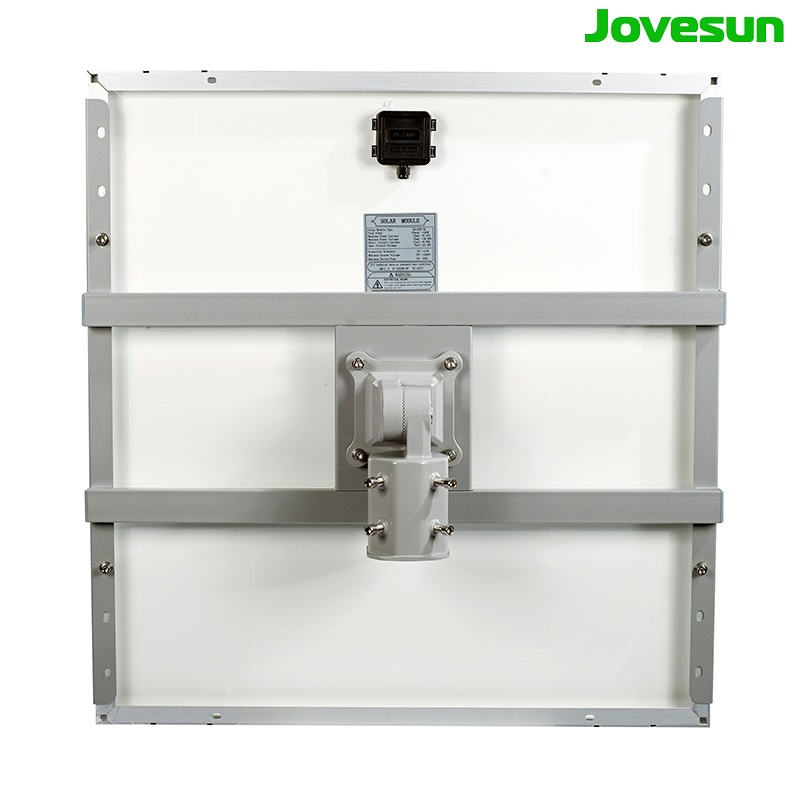

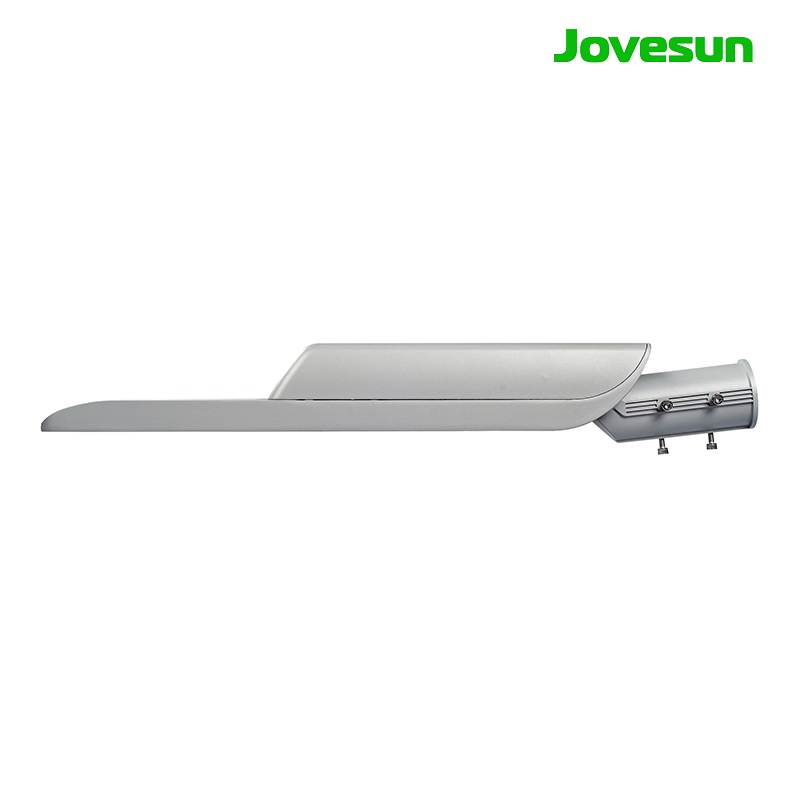

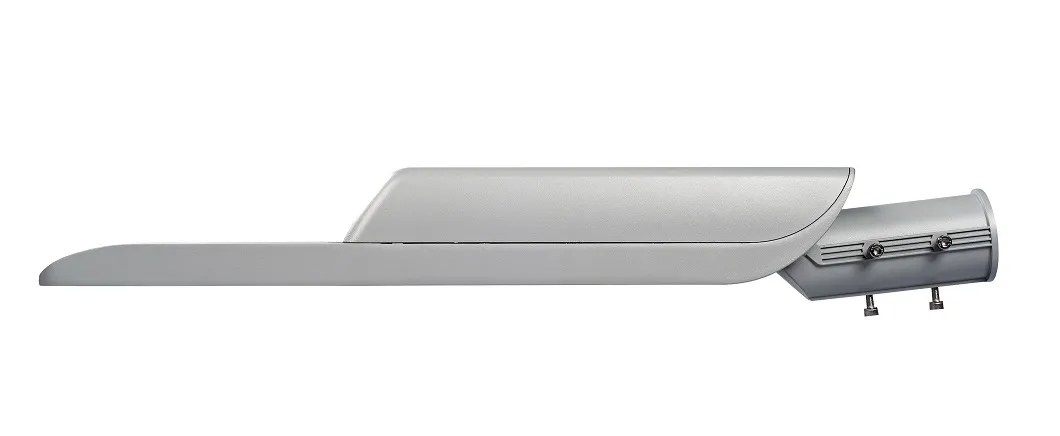

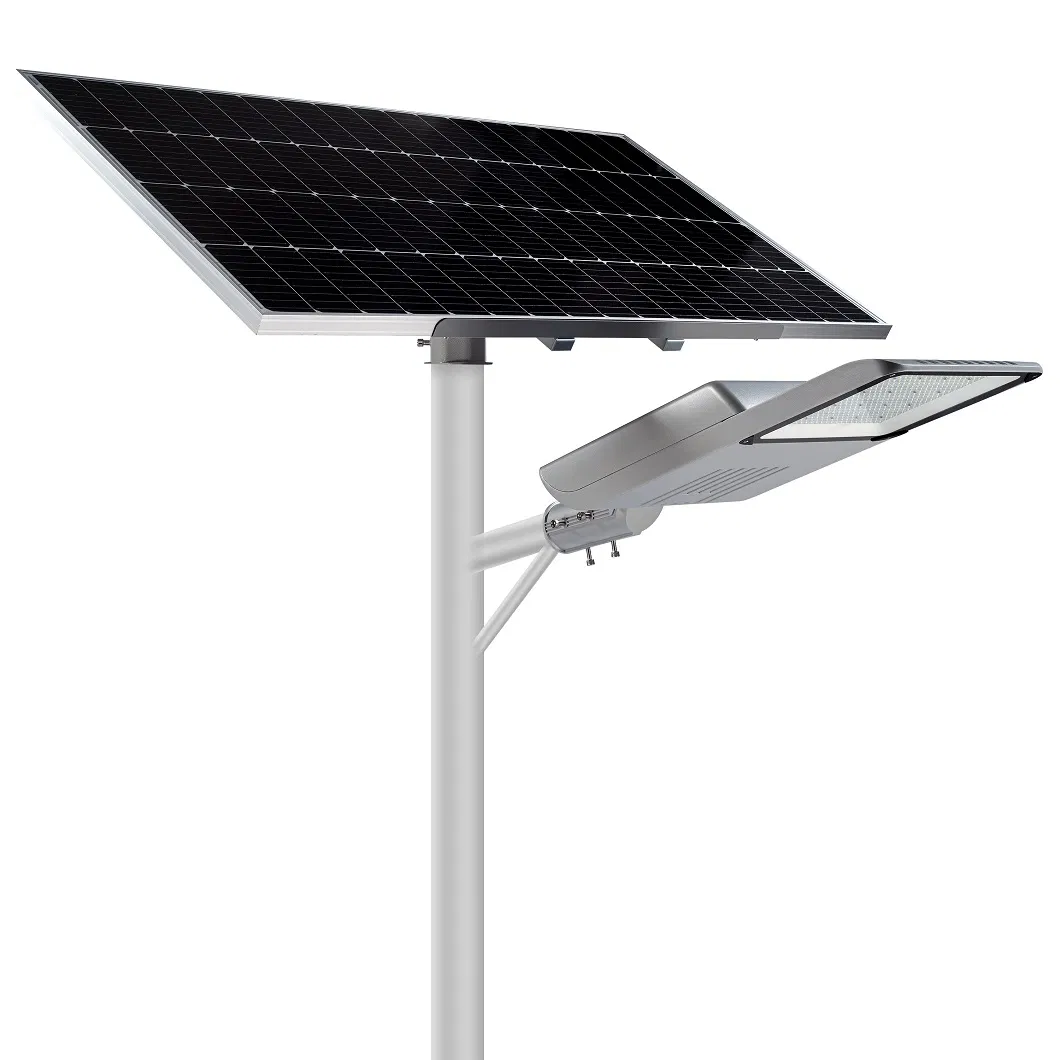

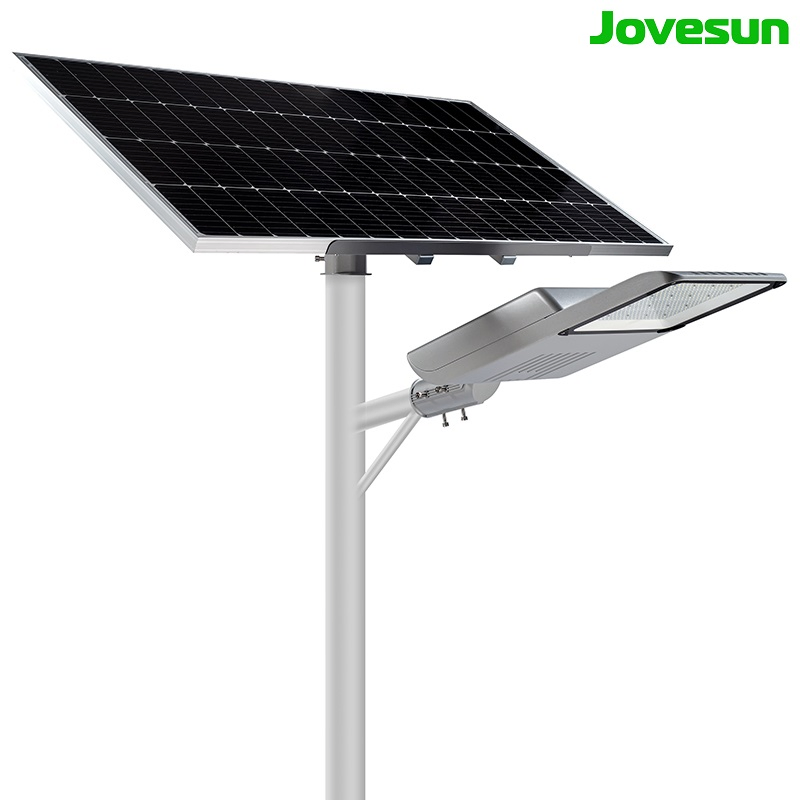

Factory 200lm Efficiency Outdoor Waterproof IP66 60W/80W/100W/120W/150W/200watts Lithium Battery Strong Lumens Split PV Panel Solar Street Light
Product Description
Solar street lights model M26/M25 are manufactured according to ISO 9001 standards, featuring a high luminous efficacy of 205 Lm/W, specifically designed for public lighting applications. The integrated fixture design includes the PV panel, Lithium battery, charge controller, and LED components all in one unit, ensuring simple and efficient installation.

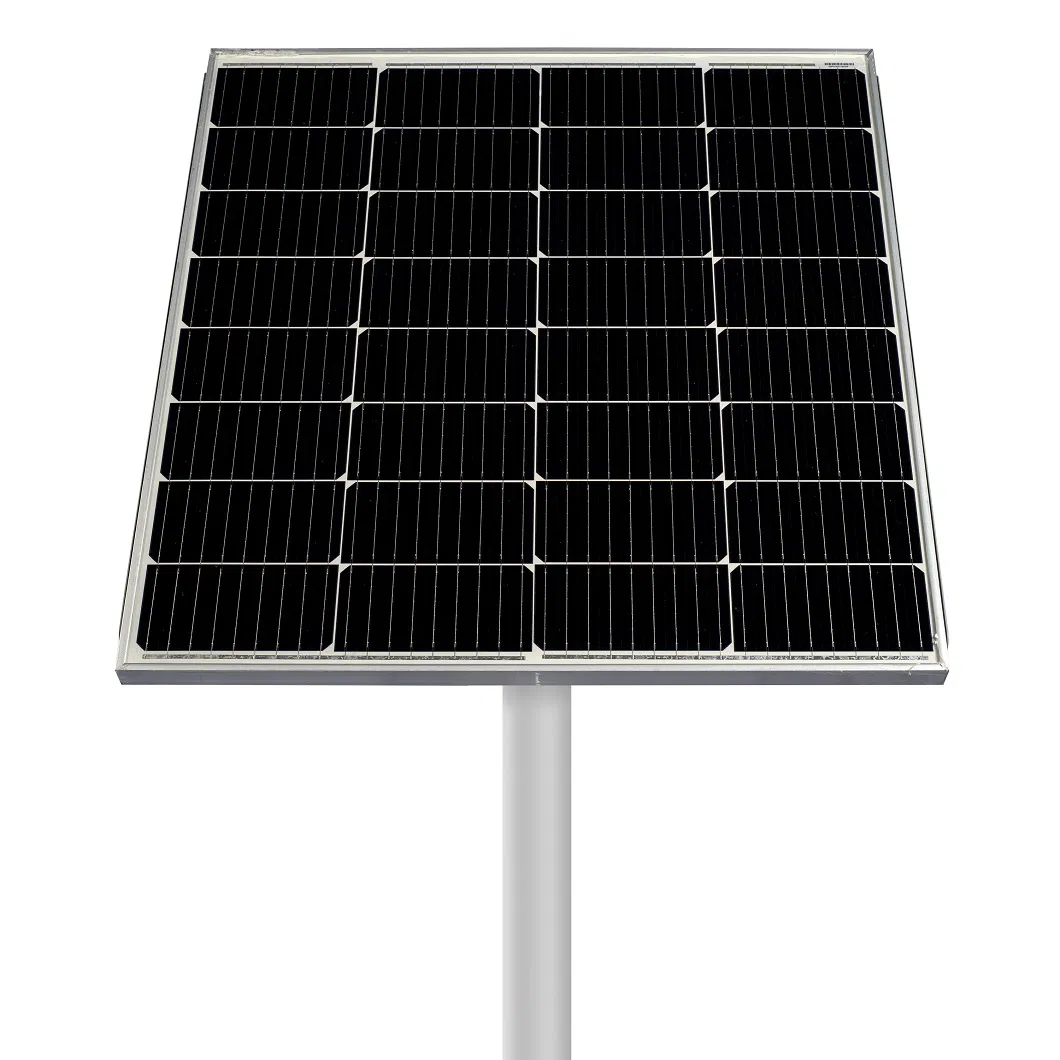

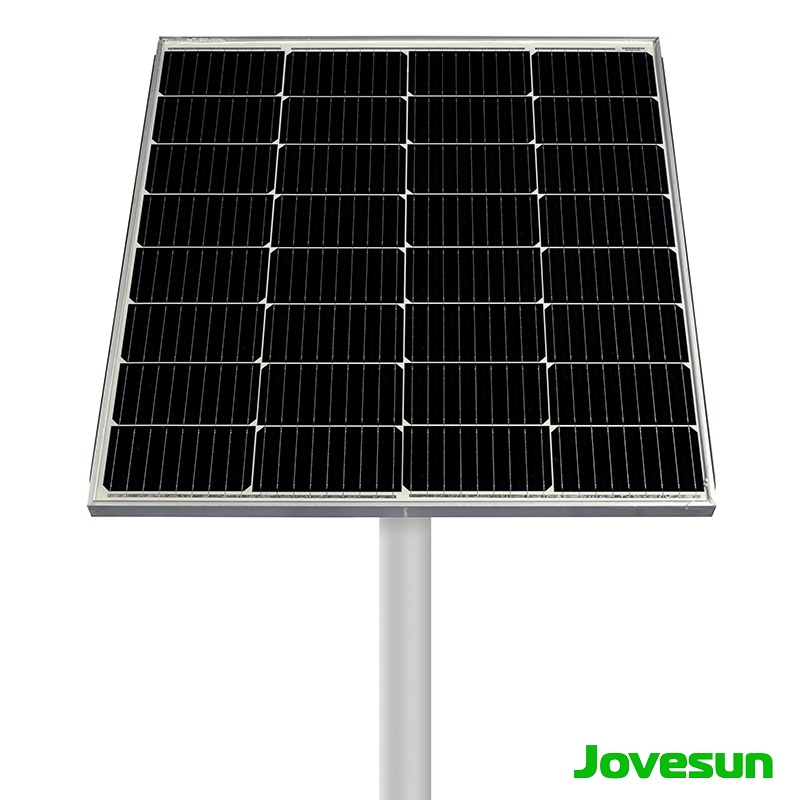

Equipped with high-efficiency 24% conversion Monocrystalline solar panels and LiFePO4 batteries, these lights utilize MPPT charging technology and constant current drivers for superior charge and discharge performance. The 120W model is suitable for mounting heights up to 12 meters, providing a strong luminous flux of 52lx. With various optical lens options (Type I, II, III, IV, V), it is ideal for expressways, highways, and general area lighting.
| Parameter | M26st-60W | M26st-80W | M26st-100W | M26st-120W | M26st-150W |
|---|---|---|---|---|---|
| Solar Panel | 120Wp 18V | 160Wp 18V | 200Wp 18V | 240Wp 18V | 300Wp 18V |
| Battery | 384Wh | 576Wh | 768Wh | 960Wh | 1152Wh |
| LED Chips | 3030 SMD | 3030 SMD | 3030 SMD | 3030 SMD | 3030 SMD |
| Luminous Flux | 8200lm | 12300lm | 16400lm | 20500lm | 24600lm |
| Efficacy | 205 Lm/W | ||||
| Working Model | Motion sensor + Timer + Intelligent Control | ||||
| Mounting Height | 6-8m | 8-10m | 10-12m | 12-14m | 14-16m |
The M26 solar street light series is fully certified for professional project tenders:
- IEC 60598, 61215, 61730, 62109, 62133, 62471, 62620
- LM79, LM80, TM21
- IP66 Waterproof & IK Impact Protection
- CE & RoHS Compliance
- Full component protection certificates for Battery, PV Panel, and Controller

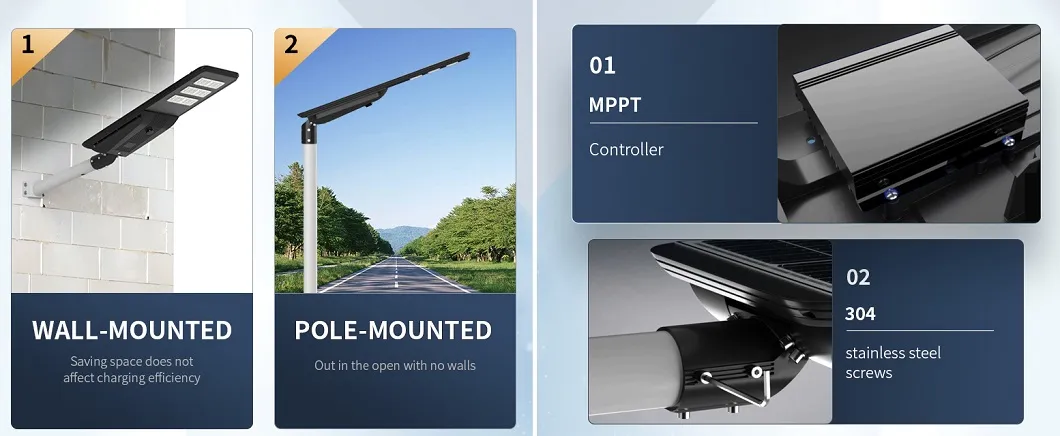

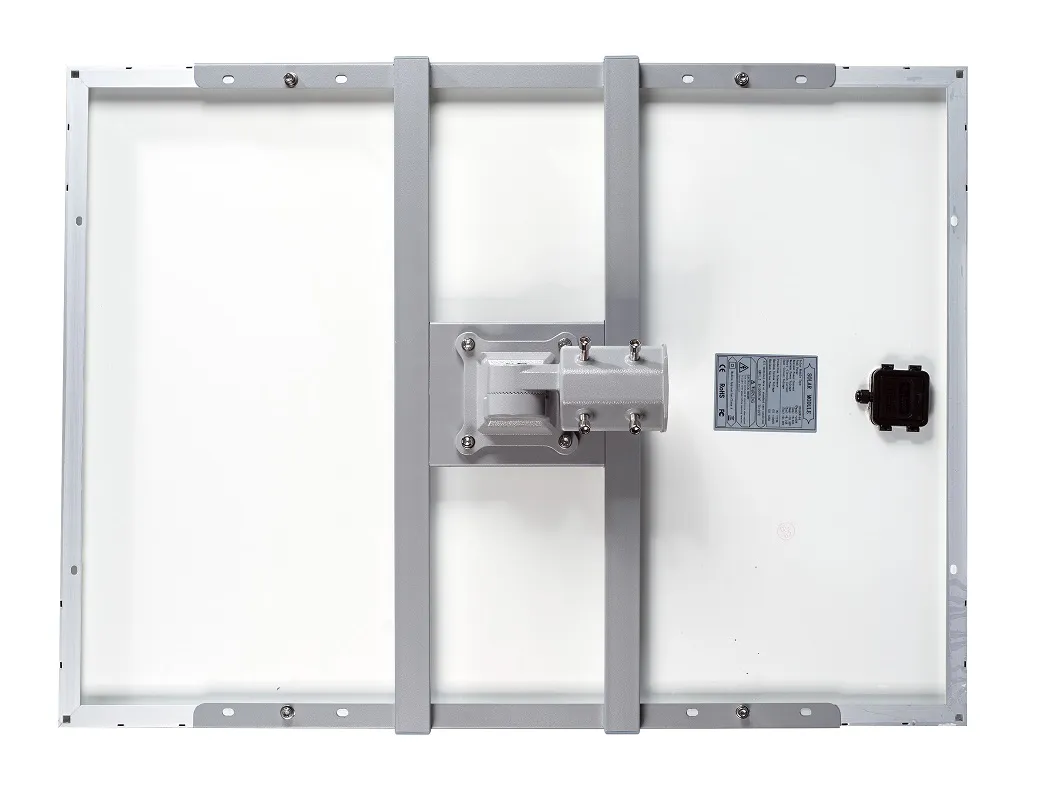

This model supports a versatile mounting tilt system, allowing for both horizontal and vertical installations. It is an ideal solution for replacing traditional HID street lights while utilizing existing poles.
